Draws a circular representative population chart based on group proportions, where each point (person) represents a fixed number of individuals. Each person is rendered as a Font Awesome icon.

Usage

geom_pop(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE,
  icon = "ggmale",
  group_var = NULL,
  sample_size = NULL,
  arrange = FALSE,
  seed = NULL,
  sum_var = NULL,
  facet = NULL,
  size = 1,
  dpi = 50,
  legend_icons = TRUE,
  stroke_width = NULL,
  ...
)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

stat

The statistical transformation to use on the data for this layer. When using a geom_*() function to construct a layer, the stat argument can be used to override the default coupling between geoms and stats. The stat argument accepts the following:

A Stat ggproto subclass, for example StatCount.
A string naming the stat. To give the stat as a string, strip the function name of the stat_ prefix. For example, to use stat_count(), give the stat as "count".
For more information and other ways to specify the stat, see the layer stat documentation.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.
A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".
For more information and other ways to specify the position, see the layer position documentation.

na.rm

logical, whether remove NA values

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

icon

Default icon to use when no icon column is mapped.

group_var

(Deprecated) Use aes(group = ...) instead.

sample_size

The total number of individuals (points) to draw.

arrange

Logical; if TRUE, output data is arranged by group.

seed

Optional numeric seed used only when arrange = FALSE.

sum_var

Optional variable to sum over instead of counting.

facet

Optional faceting variable. If provided, final plot must be faceted with ggplot2 (use validate_geom_pop_faceting(p)).

size

Icon size. If mapped in aes(size = ...) the parameter is ignored.

dpi

Height (in pixels) of the rendered PNG when using fontawesome::fa_png(). Higher values produce sharper icons.

legend_icons

Logical; if TRUE, legend displays the selected icons.

stroke_width

Numeric. Width of the icon outline in pixels (single value).

...

additional parameters

Value

A ggplot layer that renders a circular population chart with icons.

Aesthetics

geom_pop understands the following aesthetics:

icon: Font Awesome icon name (mapped column)
group: grouping variable for raw data mode
color/colour: icon color
alpha: transparency (must be mapped)
size: icon size (mapped or fixed)

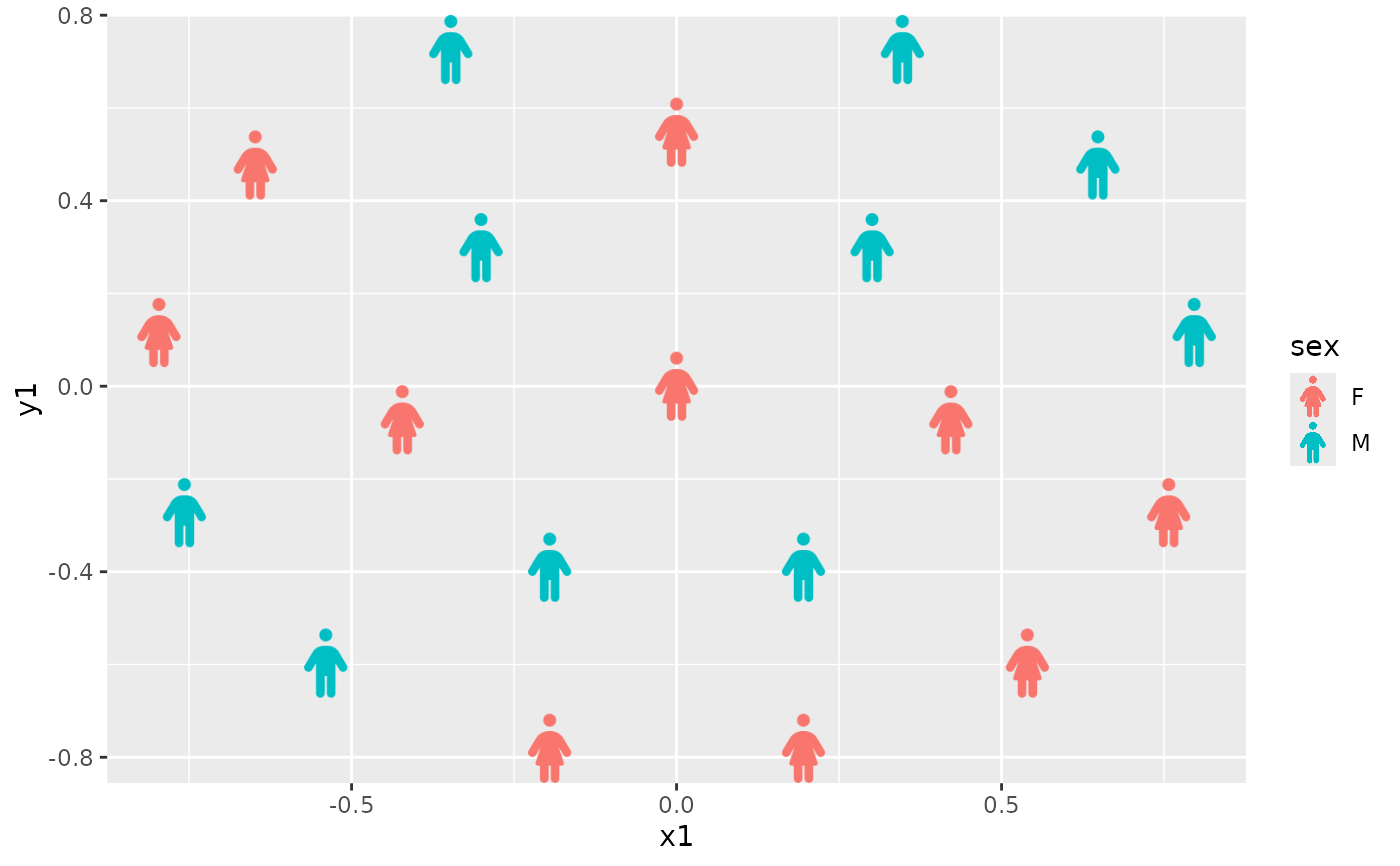

Examples

# \donttest{
library(ggplot2)

df <- data.frame(
  sex  = rep(c("F", "M"), each = 10),
  icon = rep(c("female", "male"), each = 10)
)

ggplot() +
  geom_pop(
    data = df,
    aes(icon = icon, group = sex, color = sex),
    size = 3,
    dpi = 80
  )

# }
